Personal Protective Clothing & Equipment

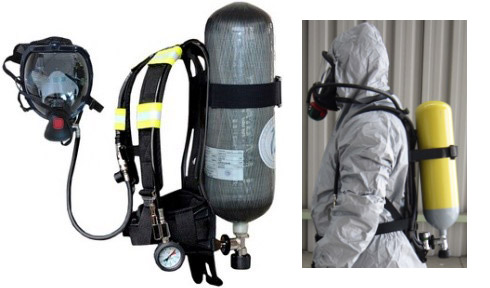

Complete with;

• Either steel or fibre wound 300 bar pressure cylinder
• Full cylinder
• Backplate
• Pressure gauge
• Low pressure warning whistle
• Pressure regulator
• Full-face mask (positive pressure)

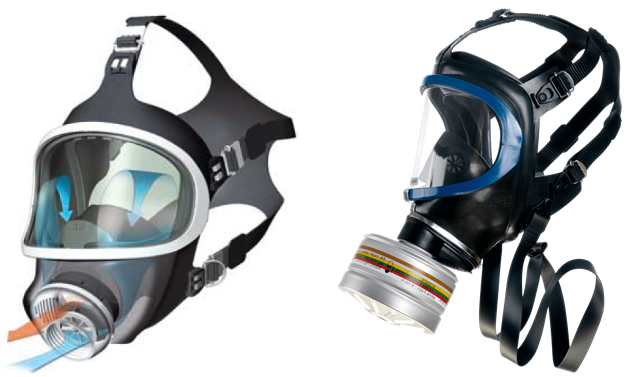

Application
The mask is provided for use with respiratory protective filters [screw-type filters with thread to EN 148-1]. It is not approved for use by fire departments or as face piece in combination with compressed-air breathing apparatus. The mask is a single port for use with screw-in type respirator canister.

Design and Construction
The mask faceblank is made of a skin-compatible and largely age-resistant natural rubber formulation. The acrylic [PMMA] lens is scratch-resistant and almost unbreakable. Moreover it offers a good field of vision. The visor is fitted with a lens frame and is easy to replace.

The adapter for the respiratory protective appliance has a round-thread connection to EN 148-1. Part of the adapter is the integrated exhalation valve which is also used for voice communication. Perfectly located in front of the mouth it transmits the voice effectively and intelligibly.

The 5-point harness supports quick donning and doffing without prior adjustment. A neck strap can easily be retrofitted and permits carrying the mask in readiness on the chest.

The mask is easy to maintain and components,  which must be replaced in regular intervals, like valve discs, are easily accessible.

Features and Benefits
● Excellent tight fit
● High wearing comfort
● Large field of vision
● Good voice transmission
● Easy to maintain

Approval
The Full Face Mask is certified and approved to EN 136, Class 2.

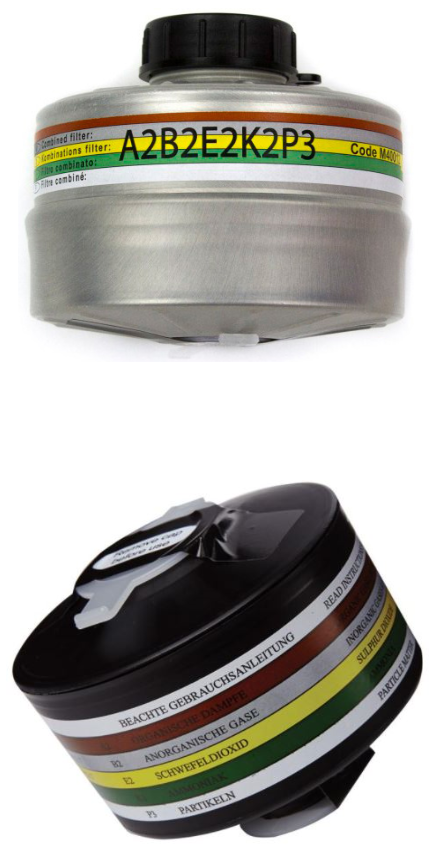

Screw-in type with either a metal or plastic casing

The high-performance filters provide strong protection against a wide range of toxic gases and particles in full accordance with the latest standards.

Available in gas filter classes 1 or 2, and particles classes 2 and 3, in single or multiple gas range

The filter has the standard threaded connection EN148-1 and is compatible with all available facepieces equipped with the same thread.

The filters are in full compliance with the REACH regulation and do not include any toxic materials listed in the European Regulation.
► EN 14387
► RU: GOST R 12.4.251-09
► KAZ: ST RK, GOST R 12.4.251-09
► BY: STB GOST R 12.4.193-2006
► AS/NZS 1716:2003

Benefits
▪ Reliable protection against gas, particles and vapor
▪ PlexTech technology for reduced inhalation resistance and more relaxed breathing
▪ Superior filter performance and service time
▪ Robust metal/plastic housing for solid mechanical performance
▪ Compact and lightweight with easy-to-cover opening
▪ Safe selection, no mix-ups, economical procurement, simpler stock keeping

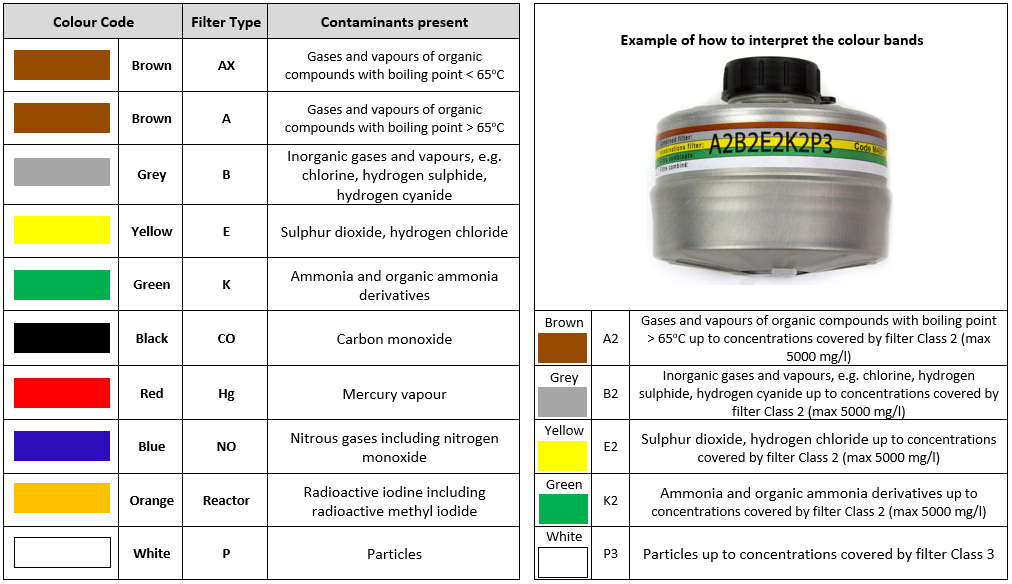

Respirator Colour Codes

Colour Code Examples

If we take the above filter from the list below, we find its filter ratings stamped on the side: “A2B2E2K2P3”. Reference the chart above to follow along: This code means the filter provides protection against gases and vapours with a boiling point greater than 65 degrees (C), inorganic gases and vapours, sulphur dioxide and hydrogen chloride, ammonia and organic ammonia derivatives, and radioactive particles. Speaking of numbers, the “2” or “3” present next to each letter code indicates what class of filtration is provided:

• Class 1 filters 1,000 mg/l
• Class 2 filters up to 5,000 mg/l
• Class 3 filters up to 10,000 mg/l

Emergency escape from hazardous areas and confined spaces: the consideration of the options for escape (self-rescue) must be an integral part of risk assessment for working in potentially hazardous areas.

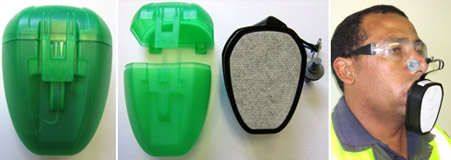

Using the latest filtering media TabTec® technology, the MSA miniSCAPE is a single use escape device with 5 minutes of service time. It protects against hazardous gases of the types A, B, E and K.

miniSCAPE is equipped with a mouthpiece and nose clip. Small and handy, the miniSCAPE fits into the pocket of a lab overall or any working clothes. It can also be carried on the belt, with the very practical integrated belt clip.

In case of emergency, it can be donned very quickly and is operational immediately. In case of sudden and unexpected outbreaks of toxic gases or vapors at the workplace, personnel can leave the danger area quickly and safely with the miniSCAPE.

The hygienic and convenient plastic casing allows frequent distribution to different persons, for example, mechanics, visitors or shift workers.

Features and Benefits
• Small design, high performance
• Quick and easy donning
• Universal fit (mouthpiece)
• Easy carrying in the pocket or on the belt
• Safe respiratory protection, also for persons for example, mechanics, visitors or shift workers.
